Windows Server 2008 R2 SP1 install breaks RDP

After installing Service Pack 1 via windows update on a Windows Server 2008 R2 machine the other day, I discovered that I could no longer use remote desktop connection to access the server remotely. At first I wasn’t sure if the whole service pack installation was botched, but further testing revealed that all other functions of this server were operating normally. A quick google search showed that I was not alone in experiencing this problem, in fact there is enough information out there to solve this without another blog post from yours truly, but there is a bit of conflicting information so I thought I would document my experience to hopefully help others.

The problem manifests itself like this:

You try to RDP the affected server and it goes through the enitre logon process, and just when you think it is going to fire up the remote desktop it bombs out. An event was logged in the application log in my case event 4005 with a source of Winlogon, stating ‘The Windows logon process has terminated unexpectedly’ (shown below), although I have read of slightly different errors on other blog posts. Checking the Terminal Services logs indicate that the logon has completed successfully.

Event 4005 Source Winlogon after Service Pack 1 install on Windows Server 2008 R2

This situation it turns out, occurs when both KB2621440 and KB2667402 are applied to a system before Service Pack 1 is applied, as they effectively leave some of the RDP DLL files out of sync, specifically rdpcorekmts.dll. Now, alot of the posts I read online stated that you simply needed to uninstall the KB2777402 update, reboot, and then reapply it to solve this problem. I tried this first and it did not work. Various posts also stated that RDP started working after the removal of this patch, again this was not the case for me although I am sure it is correct in some cases.

So the fix I used in the end was this:

Firstly I uninstalled both KB2621440 and KB2667402 via Control Panel, Uninstall a Program, View Installed Updates, and then rebooted the server. I expected the DLLs to be set back to a working state at this point but this was not the case. Luckily in my case I had physical access to the server. Other posts state that the two updates can be uninstalled remotely using the following commands if you do not have that luxury:

wmic /node:<SERVER> /user:<USER> process call create “powershell wusa /uninstall /kb:2667402 /quiet /forcerestart”

wmic /node:<SERVER> /user:<USER> process call create “powershell wusa /uninstall /kb:2621440 /quiet /forcerestart”

Note, that the commands above will restart the server

As RDP still didn’t work for me at this point contrary to other information, I ran:

sfc /scannow

This picked up some issues and required a reboot. After rebooting the server I was able to use RDP again. That was great, but didn’t help with the fact that the two patches that were removed were to address the Critical RDP vulnerability MS12-020. I certainly didn’t fancy not applying these patches to this server so I reapplied KB2621440 and KB2667402 via Windows Update, and rebooted the server. Thankfully after this I had a fully patched server and working RDP.

If you need to do all of this remotely and find that you still can’t RDP the server after removing the two patches using the commands above I recommend running sfc /scannow using PSEXEC:

psexec \\SERVER sfc /scannow

Then when the scan is finished performing a remote reboot using:

psexec \\SERVER shutdown -r -t 01

This should get your RDP back to a working state, and then you can reapply the removed updates. I have not corfirmed this but expect this fix will also work for Windows 7.

Advertisements

Upgrade flash memory in a Cisco 877 Router

Undo the 2 screws on the back on the router as shown:

Opening the case of a Cisco 877 Router

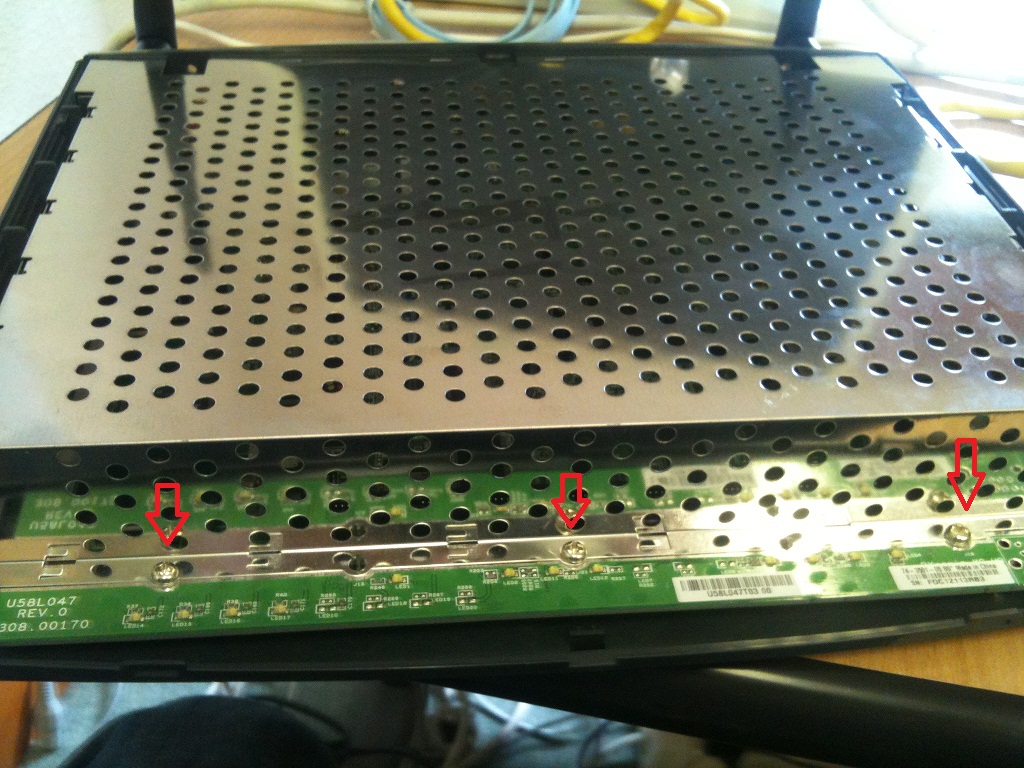

Then undo the 3 screws securing the protective metal case beneath:

Accessing the flash and RAM slots in a Cisco 877 router

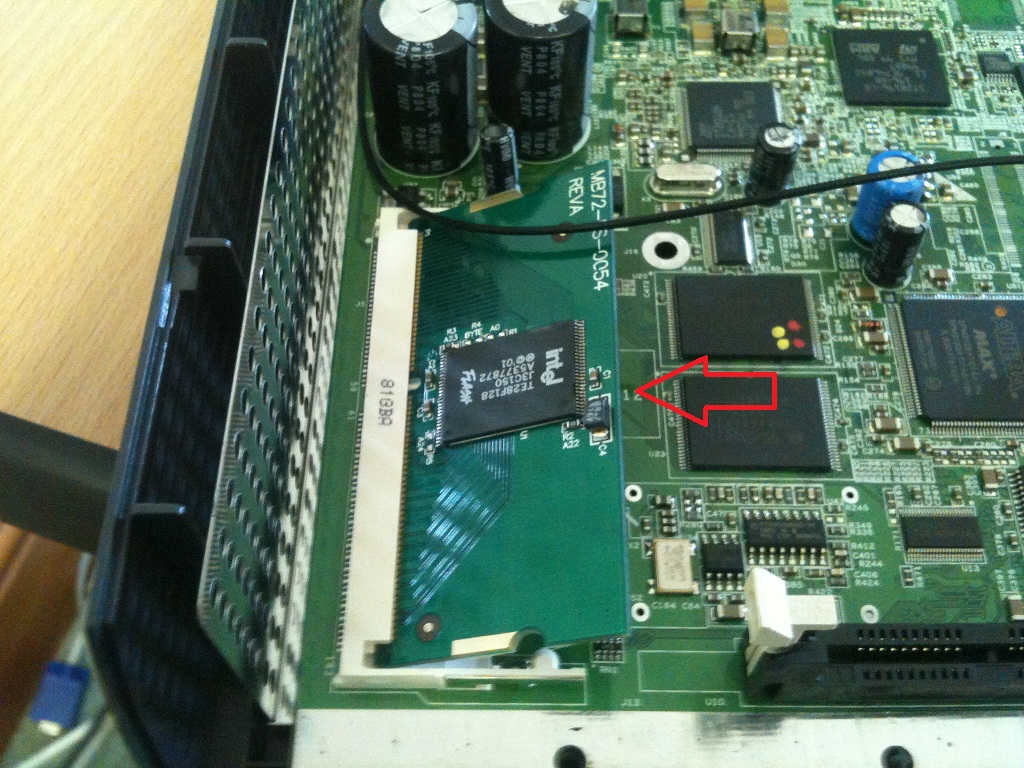

Swap the flash memory for the new larger bit:

Swapping the flash memory



Replace the case, plug in the power, connect the router to your computer using a console cable, and then power it on.

Fire up hyperterm or some similar program and connect to the router. It may complain about an inconsistent sector list in flashfs on boot up, and will also tell you that there is no bootable IOS image file in the flash memory. Once you are at the ROMMON prompt issue the following command:

format flash:

click ‘y’ and press enter to confirm the format operation

Once the format is complete, connect a LAN patch lead from you computer to the router. Assign an IP address to the LAN adapter of your computer such as 192.168.1.1/24. Fire up a bit of TFTP server software on your computer, such as Cisco TFTP server, or Solarwinds TFTP server

At the rommon prompt type the following,  making sure you assign an IP address to the router that is in the same subnet as the IP that you assigned your computer, e.g.

IP_ADDRESS=192.168.1.254

then assign a subnet mask:

IP_SUBNET_MASK=255.255.255.0

then a default gateway:

DEFAULT_GATEWAY=192.168.1.254

then a TFTP server (i.e. the IP address you assigned your computer’s LAN adapter):

TFTP_SERVER=192.168.1.1

and finally the filename of the IOS image that you want to transfer back on to your router

TFTP_FILE=c870-advsecurityk9-mz.124-15.T12.bin

If you want to review the variables that you have set above any time just type:

set

Next issue the tftpdnld command to copy the IOS image to the flash memory of your router using tftp:

tftpdnld

Click ‘y’ to continue. This will take a few minutes. After that reboot the router and you’re done:

reset
