Citrix – The following requested video mode was not available

January 10, 2012 7 Comments

Recently we received the following error message when accessing Citrix Presentation Server on a few client machines which had had large wide screen monitor upgrades. The application that had been started would also not enter full screen mode.

The following requested video mode was not available: 1920 x 1080 x 24 BPP

The video mode has been set to the following mode: 1847 x 1038 x 24 BPP

Video mode restricted by administrator.

Citrix Error: The following requested video mode was not available

This was due to the fact that not enough memory had been allocated to the graphics for individual client sessions to support the resolution on larger monitors. This can be resolved by modifying the Farm ICA Display settings in the Citrix Access Management Console. Right click on the Farm object in the Citrix Access Management Console and choose ‘Properties’. Then under ‘Server Default’, ICA, click on ‘Display’. Change ‘Maximum memory to use for each sessions’s graphics’ from the default (in my case 5625) to 8192 as shown below:

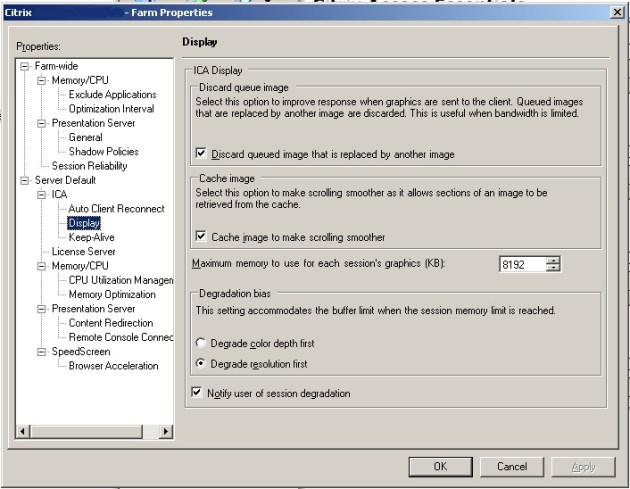

Changing the 'Maximum memory to use for each session's graphics' setting under Server Default, ICA, Display

After increasing the memory available for each sessions graphics, you should find that Citrix is able to support the higher resolutions OK.

Advertisement

Filed under Citrix, General Tagged with , , ,

Restrict or filter GAL access for OWA users using MSExchQueryBaseDN in Exchange 2007

January 9, 2012 Leave a comment

When hosting Exchange 2007 mailboxes for use purely with Outlook Web Access (OWA) you may wish to limit access to the Global Address List (GAL), so that logged in users can only see a subset of the contacts in the GAL. This would be particularly relevant in hosting environments where mailboxes may be hosted for multiple companies in the same active directory, and you might want users to only see contact information from users for their company, rather than all companies.

A while ago we had a situation where this was a requirement. In our case there were several groups of users who would only be accessing email through OWA, and only needed contact information for a subset of staff. We were able to use custom address lists and the MSExchQueryBaseDN user attribute to solve this problem.

If you run adsiedit.msc and look at the properties of a user object you can scroll down the list of attributes to find MSExchQueryBaseDN.

The MSExchQueryBaseDn attribute in adsiedit

In order to limit which contacts a particular user or group of users can access, firstly you need to set up a new Address List either using the Exchange Management Console, or Exchange Management Shell. The address list should contain the contacts that you want the user or group of users to be able to view. Please note that you could point the MSExchQueryBaseDN attribute to an Organizational Unit, so it would filter contact information for just the users in that OU, but if you need the flexibilty to include contact information for users from various OUs in active directory, it may be easier to use a custom address list.

Once this is done you need to set the MSExchQueryBaseDN attribute of each of the users who you want to restrict to the distinguished name of the address list you created.

e.g.

CN=YOUR_RESTRICTED_ADDRESS_LIST,CN=All Address Lists,CN=Address Lists Container,CN=First Organization,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=YOUR_DOMAIN,DC=local

Where YOUR_RESTRICTED_ADDRESS_LIST is the name of your address list and YOUR_DOMAIN is the name of your domain.

Obviously it would be too time consuming to set this attribute manually for hundreds of users so you could either use ADModify if you want to use a GUI:

Set MSExchQueryBaseDN using ADModify.Net

To reset to the default value using ADModify.Net use a value of ‘null’.

You could also use  to achieve this in Powershell if you would prefer to use the command line. Further details can be found here.

Please note: Using this attribute in Exchange 2010 SP1 may result in undesirable consequences. It has been reported that if this attribute is used you may find that users with the attribute set cannot view the contents of their address list, particularly in Outlook.

Filed under Active Directory, Exchange Tagged with , , , ,

Export a list of members from an Active Directory group to a text file

January 6, 2012 20 Comments

I needed to export a list of all the members in an active directory group today. Here are two methods which work well. The first example uses the net group command. In both examples ‘Group Name’ is the name of the group that you want to export the member list for, and memberlist.txt is the name of the output file.

net group “Group Name” /domain > memberlist.txt

The second example uses dsquery and dsget, which will return the full distinguished names of the user objects that are members of the group. This could be useful if you also need to know which organizational unit the members accounts reside in.

dsquery group -name “Group Name” | dsget group -members > memberlist.txt

Filed under Active Directory, General, Windows Tagged with , , , ,
